Product Description:
These cables are used for electricity supply in low voltage installation systems, They are well adapted to underground use in industrial applications with an additional mechanical protection and suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

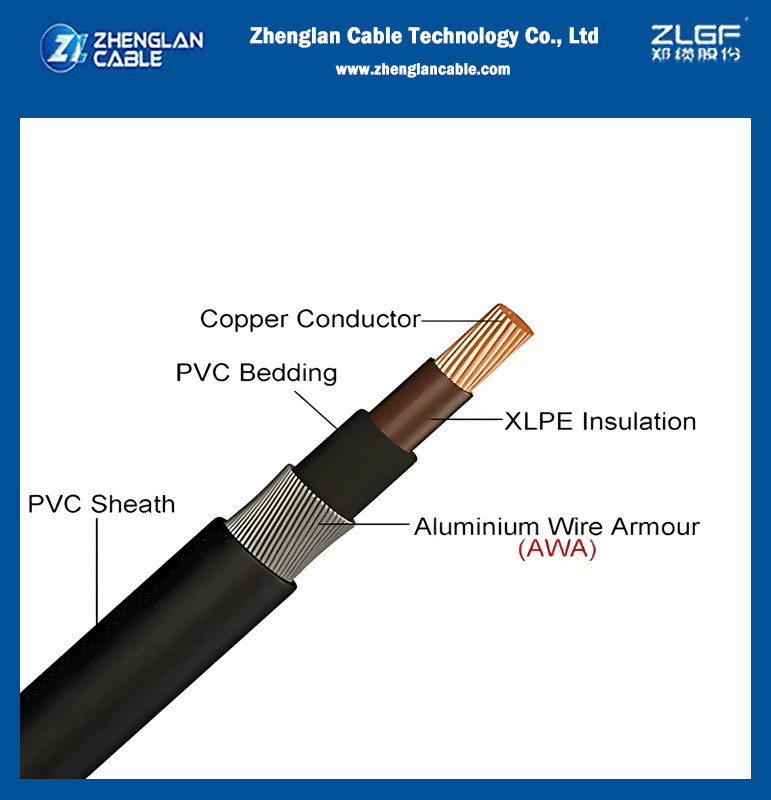

Construction
- Conductor: Aluminum/Copper, class 1 or class 2, solid or stranded, circular or compacted conductors
- Insulation: Cross-linked polyethylene XLPE/PVC
- Filler: Non-hygroscopic material
- Binder: Non-hygroscopic material
- Inner sheath: Polyvinyl chloride PVC
- Armour: Aluminum/Galvanized Steel Wires
- Binder: Non-hygroscopic material
- Outer sheath: Polyvinyl chloride PVC
- Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Standards:
IEC 60502-1, GB/T12706.1, BS 5467, AS/NZS 5000.1
Technical Parameters:

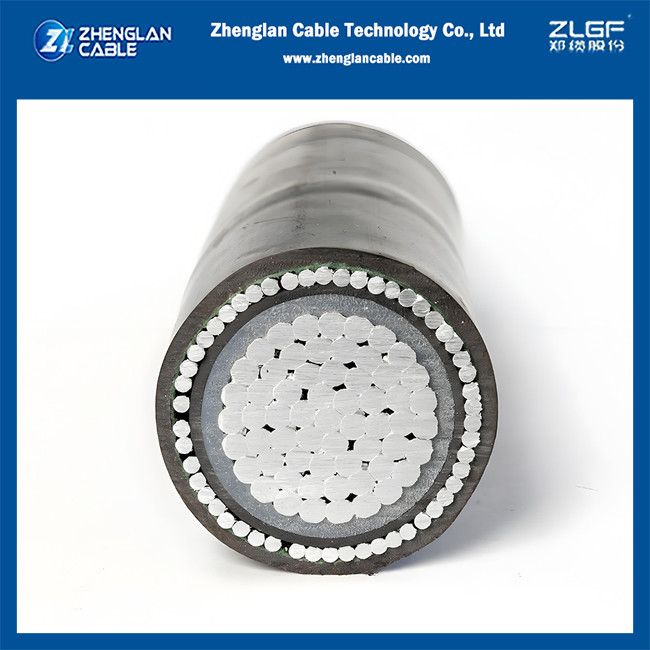

Single Core Aluminum Wire Armored (AWA) XLPE Cable
| Cross Section | Conductor Dia.(Approx.) | XLPE InsulationThickness | Dia. of Armored Wire | PVC Sheath Thickness | Overall Dia.(Approx.) | Weight of Cable
(Approx.) |
| Copper | Aluminum |
| mm2 | mm | mm | mm | mm | mm | kg/km | kg/km |
| 95 | 11.4 | 1.1 | 1.25 | 1.8 | 21.7 | 1233 | 660.7 |
Image:
Packing and Shipping:
Product Name: Low-Voltage Power Cable
Description: High-quality low-voltage power cable suitable for various applications.
Packaging: Each cable is neatly coiled and wrapped in plastic to ensure protection during shipping.
Shipping: The cables are packed in sturdy cardboard boxes to prevent damage during transit. We use reliable shipping carriers for safe and timely delivery.
Why Choose Us:
OEM/ODM services provided.
Products comply with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; Customer standard requirements accepted.
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡.
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the highest efficient shipping time guaranteed.
Professional pre-sales and after-sales services are provided
