0.6 / 1.0 KV XLPE / XLPO Insulation Twin Core Solar Cable 6mm Adapted To PV Systems EN 50618

Name: 06 10 KV XLPE XLPO Insulation Twin Core Solar Cable 6mm Adapted To PV Systems EN 50618
Brand: Zhenglan Cable
Price: 0.1 USD

0.6 / 1.0 KV XLPE / XLPO Insulation Twin Core Solar Cable 6mm Adapted To PV Systems EN 50618 Manufactures

Brand Name : Zhenglan Cable

Model Number : 6mm2

Certification : 3C，ISO 9001:2015，ISO 14001:2005

Place of Origin : China

MOQ : 5000meters

Price : 0.1-80USD/M

Payment Terms : T/T, L/C, ,Western Union

Supply Ability : 60000M/DAY

Delivery Time : 7-15DAY

Packaging Details : 200M/ROLL

Conductor : Copper

Insulation : XLPE / XLPO

Size : 6mm2

Standard : EN50618, EN50332-1

Nominal Voltage : 0.6/1KV

Test Voltage : 3.5 KV

Contact Now

0.6 / 1.0 kV XLPE / XLPO insulation Twin Core Solar Cable 6mm Adapted to PV systems EN 50618

Application:: Twin core 6mm cable is permitted to be installed in cable trays, wireways,conduits, etc. This cable meet the varying needs of the solar industry. Applications include cable routings from module strings to collect boxes and other required routings in balance of system integration.

Standard:: Twin Core Solar Cable certified according to EN 50618:2014
Electrical Parameters:: Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
Product features:: Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:: Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.; Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.; Core Identification : Red, black or natural Sheath :; UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.; Cable Colour : Black or Red,Blue
6mm twin core solar cable Advantage:: 1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.; 2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.; 3. Double protection: The photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.; 4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.; 5, strong flexibility: cable has a pressure, bending, strong toughness.; 6, long service life: normal outdoor use, service life> 25 years; 7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.

6mm twin core solar cable Parameter

Construction	Conductor Construction	Conductor	Outer	Resistance Max	Current Carring Capacity
n×mm²	n×m	mm	mm	Ω/Km	A
2×1.5	30×0.25	1.58	4.90	13.3	30
2×2.5	50×0.256	2.06	5.45	7.98	41
2×4.0	56×0.3	2.58	6.15	4.75	55
2×6	84×0.3	3.15	7.15	3.39	70
2×10	142×0.3	4.0	9.05	1.95	98
2×16	228×0.3	5.7	10.2	1.24	132
2×25	361×0.3	6.8	12.0	0.795	176
2×35	494×0.3	8.8	13.8	0.565	218
2×50	418×0.39	10.0	16.0	0.393	280
2×70	589×0.39	11.8	18.4	0.277	350
2×95	798×0.39	13.8	21.3	0.210	410
2×120	1007×0.39	15.6	21.6	0.164	480

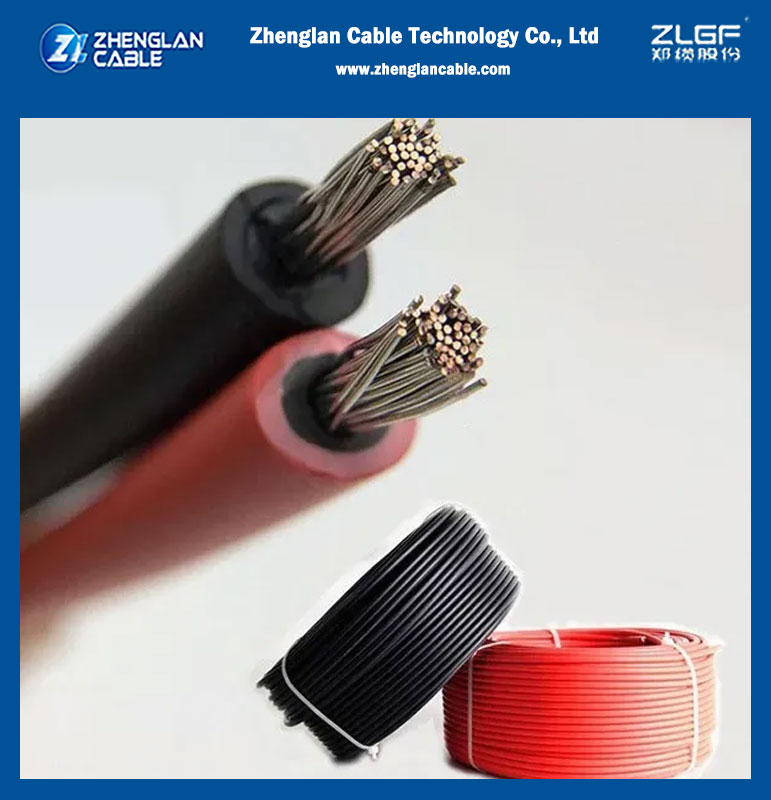

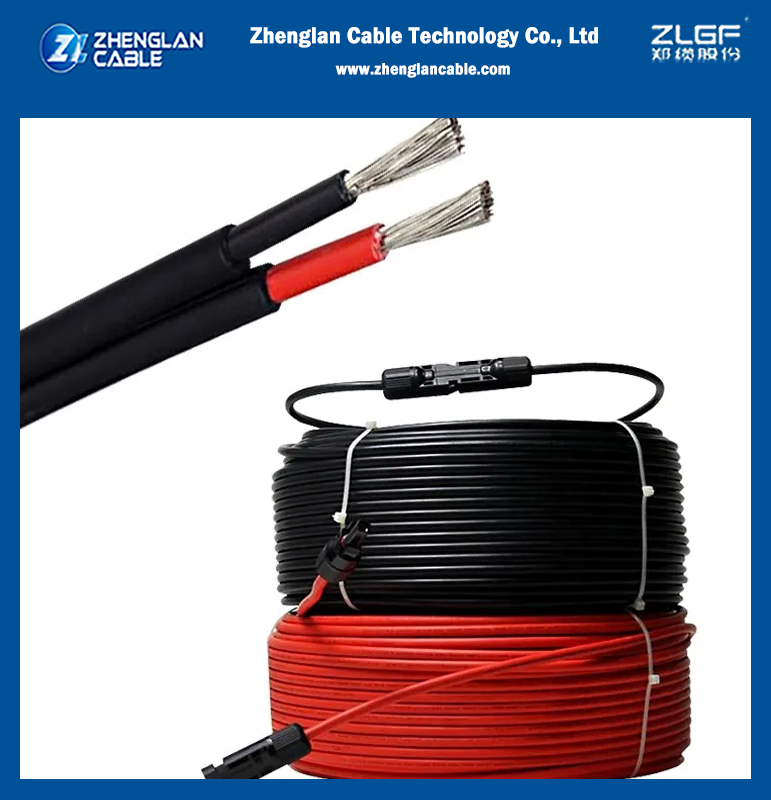

6mm twin core solar cable images

0.6 / 1.0 KV XLPE / XLPO Insulation Twin Core Solar Cable 6mm Adapted To PV Systems EN 50618
