1KV Power Cable 5x16mm2 CU/XLPE/PVC LSZH N2XY/N2XY IEC 60502-1

Name: 1KV Power Cable 5x16mm2 CUXLPEPVC LSZH N2XYN2XY IEC 605021
Brand: Zhenglan Cable
Price: 1 USD

Brand Name : Zhenglan Cable

Model Number : 1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1

Certification : ISO

Place of Origin : Henan China

MOQ : 1000meters

Price : 1-100USD/meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000m/day

Delivery Time : 7working days

Packaging Details : Drum

Conductor : bare copper

Insulation : XLPE

Armor : no

Outer sheath : PVC(LSZH)

Core number : 5core

Voltage : 0.6/1kv

Contact Now

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1

These power cables are for underground use in industrial applications with an additional mechanical protection in low voltage installation system. These cables can be fixed on cable trays, within conduits or fixed to walls.

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Construction: Cu/XLPE/LSZH
Conductor: Plain annealed copper (class 2, normal stranded(≤35mm2) or compact stranded(＞35mm2)
Insulation: XLPE
Filler, binder and inner covering (if any): PP, PET, LSZH
Outer sheath: PVC(LSZH)

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Characteristics
Voltage rate: 0.6/1kV
Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.
Minimum bend radius: 8xD (eight times overall diamerter of cable)
Flame retardant optional: IEC 60332-1; IEC 60332-3-24
Acid gas emission (HCl)(optional): IEC 60502-1; IEC 60754-1
Fluorine content: IEC 60502-1; IEC 60684-2
pH and conductivity: IEC 60502-1; IEC 60754-2
Smoke emission(optional): IEC 61034-2

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 technical data

Nominal

Area

Approx Conductor Diameter

Nominal Insulation thickness

Nominal Sheath thickness

Approx.

Overall Diameter

Approx.

Weight

Kg/km

5x16

5.04

0.7

1.8

21.7

1008

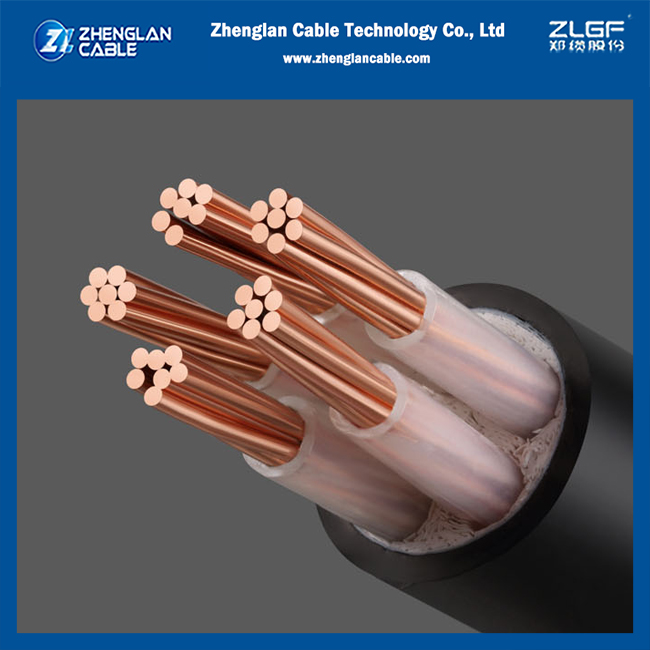

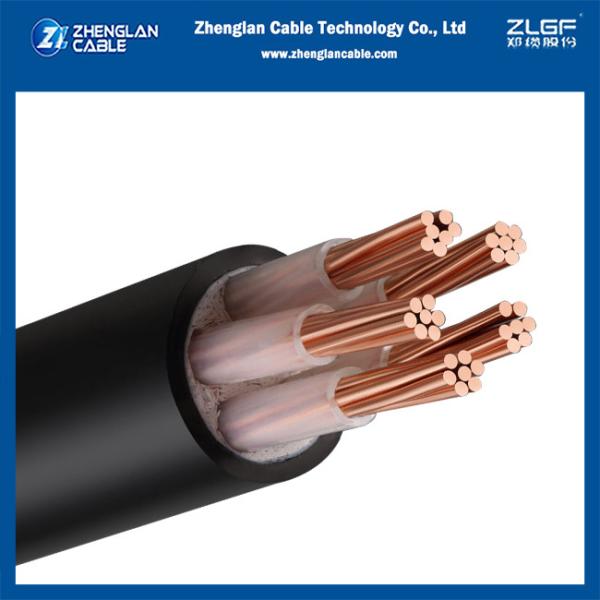

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Product images

1KV Power Cable 5x16mm2 CU/XLPE/PVC LSZH N2XY/N2XY IEC 60502-1

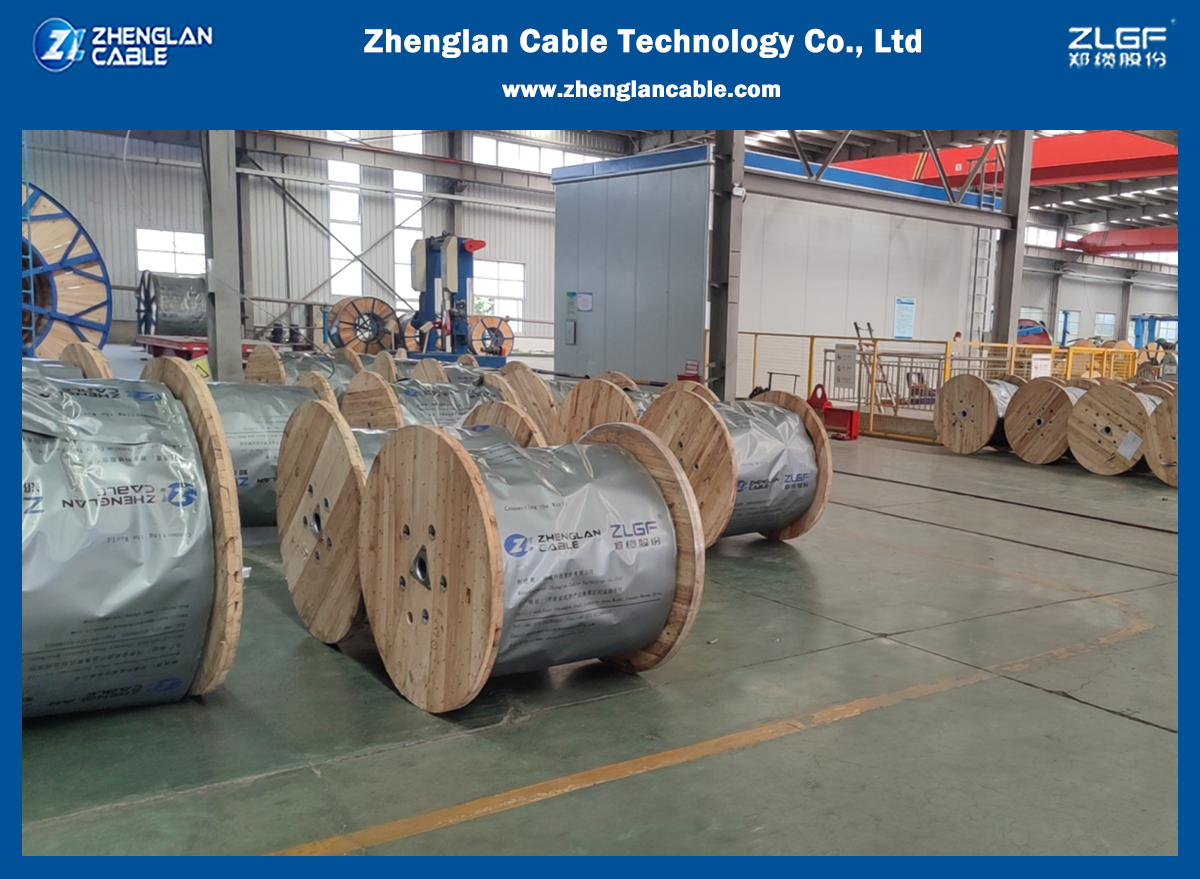

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 packages

1KV Power Cable 5x16mm2 CU/XLPE/PVC LSZH N2XY/N2XY IEC 60502-1

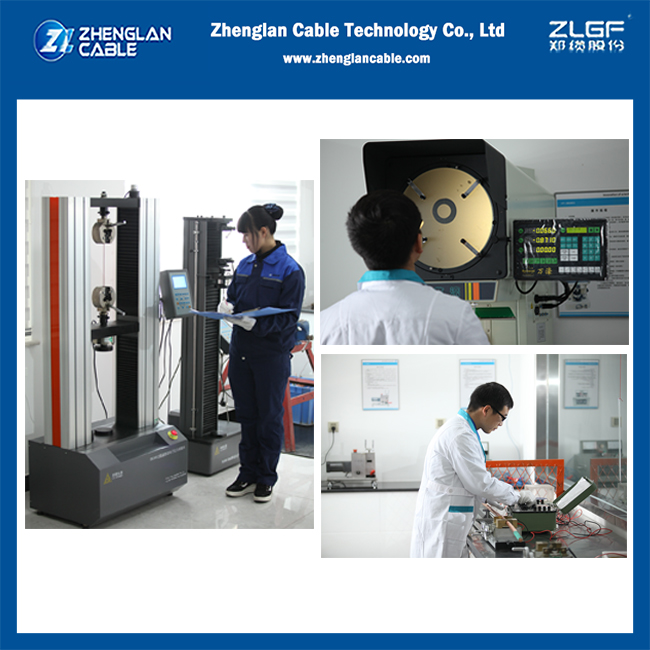

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 test machines
