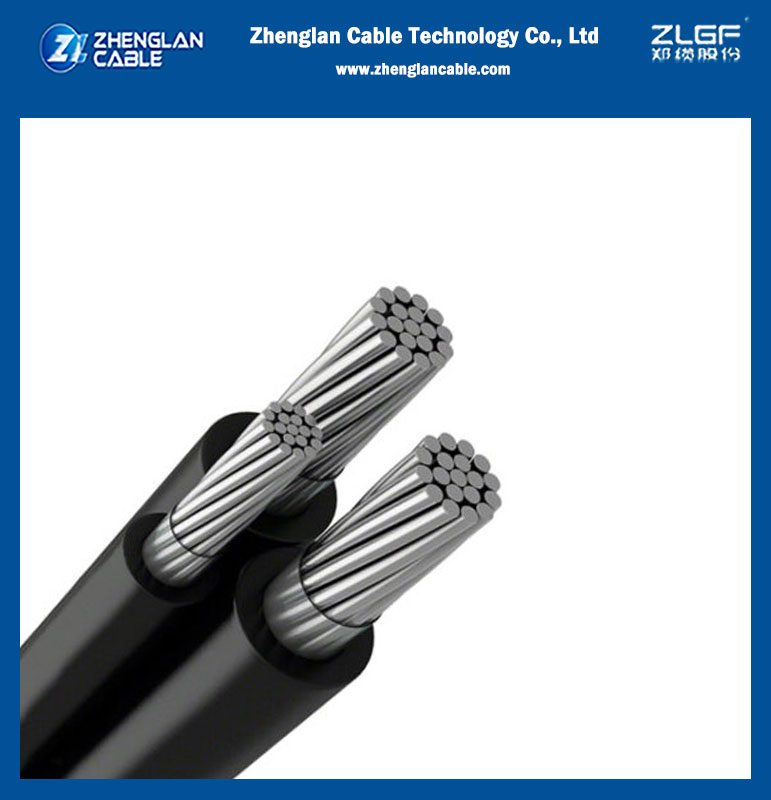

Triplex Service Drop ABC Cable - AAAC ASTM B-230, B-231, B-232, and B-399 ICEA S-76-476
AAAC Triplex Service Drop Application :
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum.

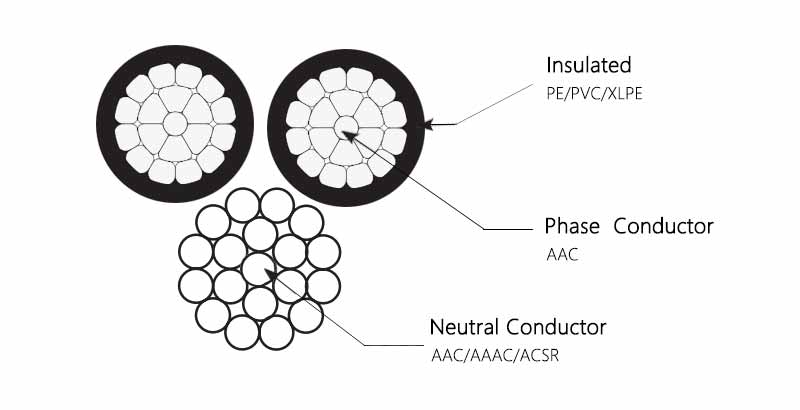

AAAC Triplex Service Drop Construction:
AAAC Triplex Service Drop Specifications:
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft. (lbs.) | Allowable Ampacities+ |
| Size (AWG) | Stranding | Covering Thickness (mils.) | ACSR Equivalent (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | POLY | XLP |
| Minex | 6 | 1 | 45 | 6 | 7 | 1110 | 101 | 102 | 70 | 85 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1110 | 105 | 107 | 70 | 85 |
| Artemia | 4 | 1 | 45 | 6 | 7 | 1110 | 132 | 134 | 90 | 115 |
| Prawn | 4 | 1 | 45 | 4 | 7 | 1760 | 152 | 154 | 90 | 115 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1110 | 141 | 144 | 90 | 115 |
| Barnacle | 4 | 7 | 45 | 4 | 7 | 1760 | 157 | 160 | 90 | 115 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1760 | 212 | 216 | 120 | 150 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2800 | 238 | 243 | 120 | 150 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2800 | 341 | 348 | 160 | 205 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4460 | 384 | 390 | 160 | 205 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2800 | 336 | 342 | 160 | 205 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4460 | 378 | 384 | 160 | 205 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5390 | 474 | 481 | 185 | 235 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5390 | 467 | 473 | 185 | 235 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4460 | 518 | 525 | 215 | 275 |
| Flustra | 3/0 | 19 | 60 | 3/0 | 7 | 6790 | 588 | 596 | 215 | 275 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5390 | 632 | 640 | 245 | 315 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8560 | 716 | 725 | 245 | 315 |

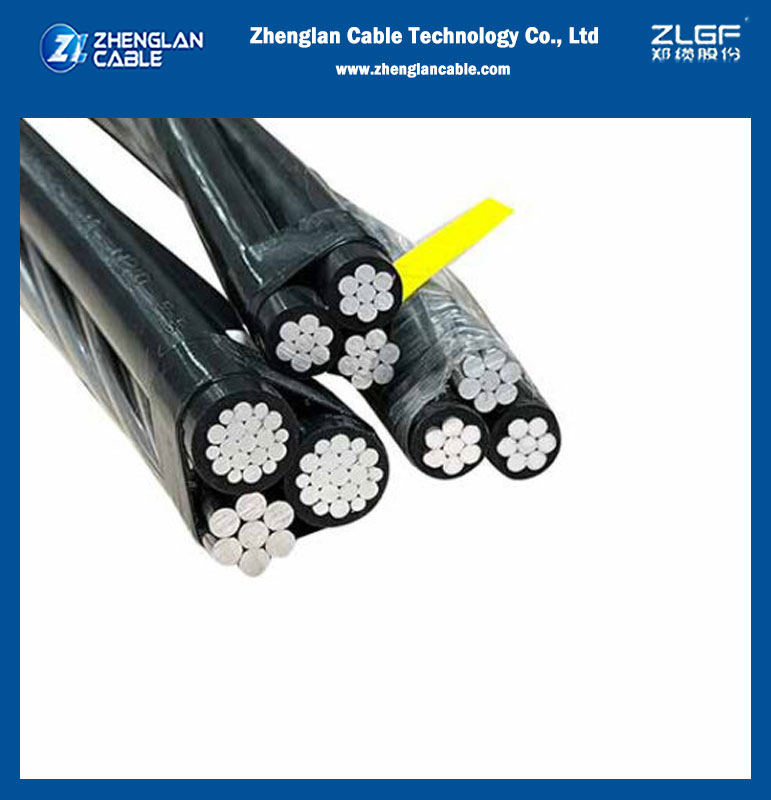

MV IEC 60502-2 ABC Cable images
