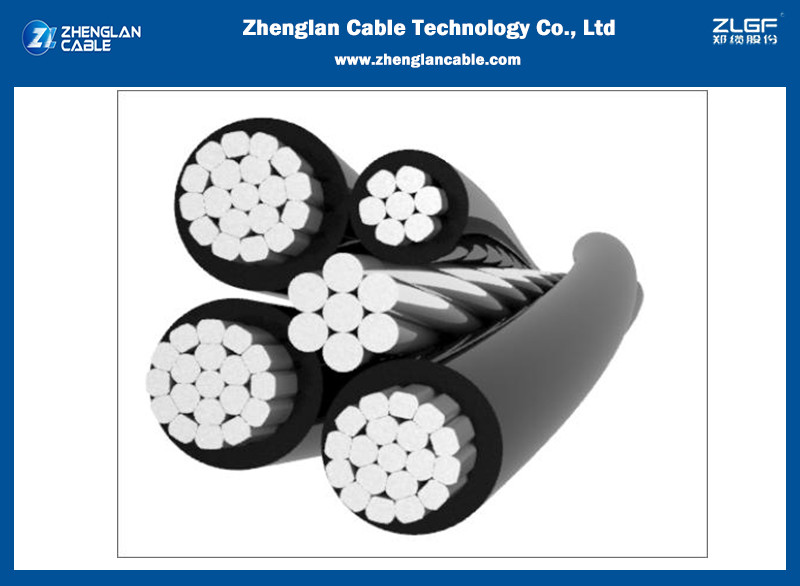

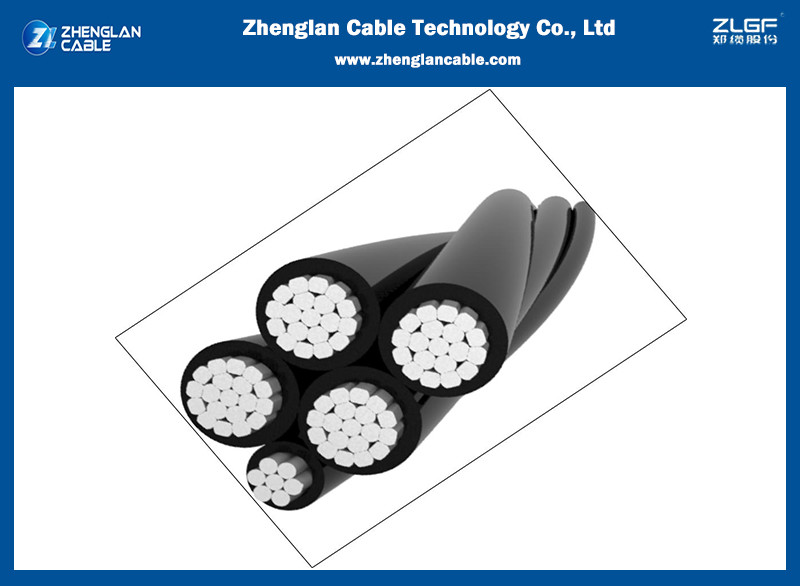

0.6/1kV Aerial Bundle Conductor Bare Alloy Support ALUM. CABLE PRE- ASSAMBLED 3X35+1X50SQMM ABC Cable
Application:
For use in power circuits of 600 / 1 000V. Installed in air suspended by a bare aluminium alloy neutral / support core
Covered line wire
Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

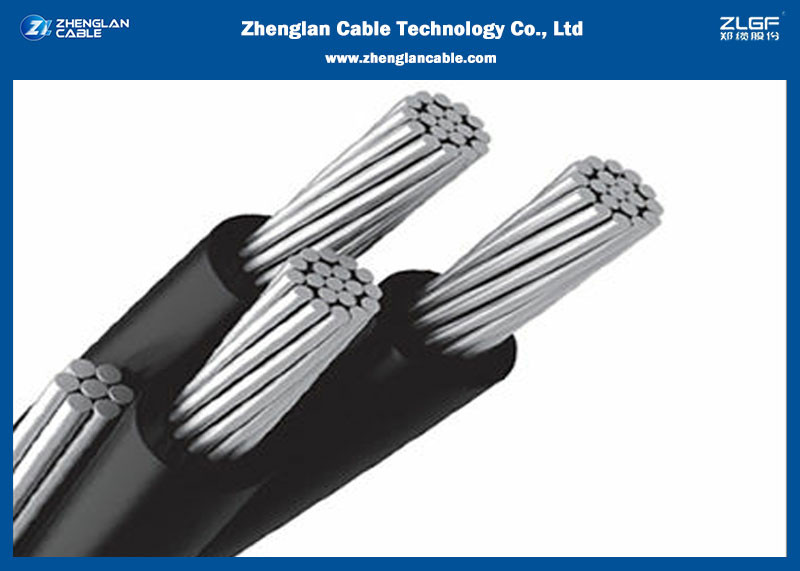

Duplex service drop
To supply 120 volt aerial service for temporary service at construction sites,outdoorr or street lighting.For service at 600 volts or lower ar a conductor temperature of 75 °Cmaximum.
Triplex service drop
To supply power from the utility’s lines to the consumer’s weatherhead.For service at 600 volts or less (pahse to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for crosslinked insulation.
Quadruplex service drop
Used to supply 3 phase power,usually from a pole-mounted transformer,to the user’s service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.
Specification Data
| Nominal Area | Number /Dia. | Insulation Thickness | Dcresistance PHASE | NEUTRAL Rated Strength kn | Delivery Lerngth |
| mm2 | mm | mm | & Ω /km | AAC | AAAC | km |
| 1×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 10 |
| 2×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 7.5 |
| 3×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 5 |
| 4×16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 5 |
| 1×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 6.5 |
| 2×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 5 |
| 3×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 3.2 |
| 4×25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 3.2 |
| 1×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 4.5 |
| 2×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 3.5 |
| 3×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 2.2 |
| 4×35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 2.2 |
| 1×50+50 | 7/3.0 | 1.5 | 0.5776 | 8.41 | 14.6 | 3 |
| 3×50+50 | 7/3.0 | 1.5 | 0.5776 | 8.41 | 14.6 | 1.3 |
| 1×70+70 | 19/2.10 | 1.5 | 0.4367 | 11.85 | 19.41 | 2.2 |
| 3×70+70 | 19/2.10 | 1.5 | 0.4367 | 11.85 | 19.41 | 0.8 |
| 3×95+95 | 19/2.50 | 1.6 | 0.3081 | 16.32 | 27.51 | 0.5 |
| Code Word | 3×25mm2+ 1×54.6mm2 | 3×35mm2+ 1×54.6mm2 | 3×50mm2+ 1×54.6mm2 | 3×70mm2+ 1×54.6mm2 | 3×35mm2+ 1×54.6mm2+1×16mm2 | 3×70mm2+ 1×54.6mm2+1×16mm2 | 3×70+ 1×70mm2 |
| Phase Conductor | Cross Section (mm) | 25 | 35 | 50 | 70 | 35 | 70 | 70 |
| Number of Wires | 7 | 7 | 7 | 12 | 7 | 12 | 12 |
| Insulation Thickness (mm) | 1.4 | 1.6 | 1.6 | 1.8 | 1.6 | 1.8 | 1.8 |
| D.C.Resistance At 20 ℃(Ohm/km) | 1.2 | 0.868 | 0.641 | 0.443 | 0.868 | 0.443 | 0.443 |
| Minium Rated Strength(daN) | 300 | - | - | - | - | - | - |
| Messenger | Cross Section (mm) | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 70 |
| Number of Wires | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Insulation Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.5 |
| D.C.Resistance A 20 ℃( Ohm/km) | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.5 |
| Minium Rated Strength(daN) | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 | 2050 |
| Public Lighting | Cross Section (mm) | - | - | - | - | 16 | 16 | - |
| Number of Wires | - | - | - | - | 7 | 7 | - |
| Insulation Thickness (mm) | - | - | - | - | 1.2 | 1.2 | - |
| D.C.Resistance At 20 ℃(Ohm/km) | - | - | - | - | 1.91 | 1.91 | - |
| Minium Rated Strength(daN) | - | - | - | - | 190 | 190 | - |
| Conductor Diameter | Phase | Max | 6.3 | 7.3 | 8.4 | 10.2 | 7.3 | 10.2 | 10.2 |
| Min | 5.8 | 6.8 | 7.9 | 9.7 | 6.8 | 9.7 | 9.7 |
| Messenger | Max | - | - | - | - | 5.1 | 5.1 | - |
| Min | - | - | - | - | 4.6 | 4.6 | - |
| Public Lighting | Max | - | - | - | - | 5.1 | 5.1 | - |
| Min | - | - | - | - | 4.6 | 4.6 | - |
| Overall Diameter | Phase | Max | 9.4 | 10.9 | 12 | 14.2 | 10.9 | 14.2 | 14.2 |
| Min | 8.6 | 10 | 11.1 | 13.3 | 10 | 13.3 | 13.3 |
| Messenger | Max | 13 | 13 | 13 | 13 | 13 | 13 | 13.6 |
| Min | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.9 |
| Public Lighting | Max | - | - | - | - | 7.8 | 7.8 | - |
| Min | - | - | - | - | 7 | 7 | - |
STANDARDS
IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511; ASTM B 231; ICEA S-76-474;
NTP 370.254; NTP 370.258; NTP-IEC 60228; NFC 33-209
Marking:
(Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Year - Sequential length.
